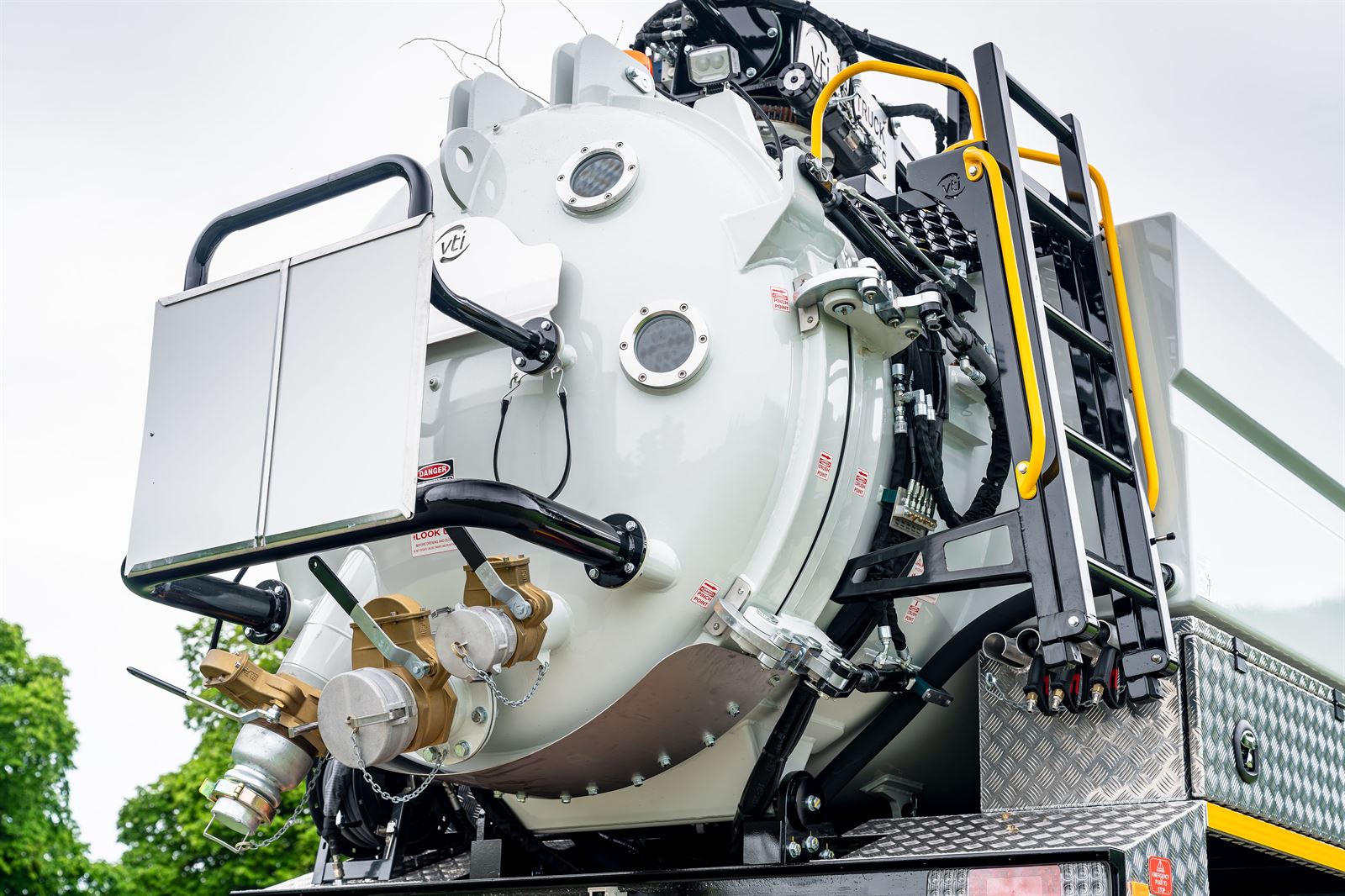

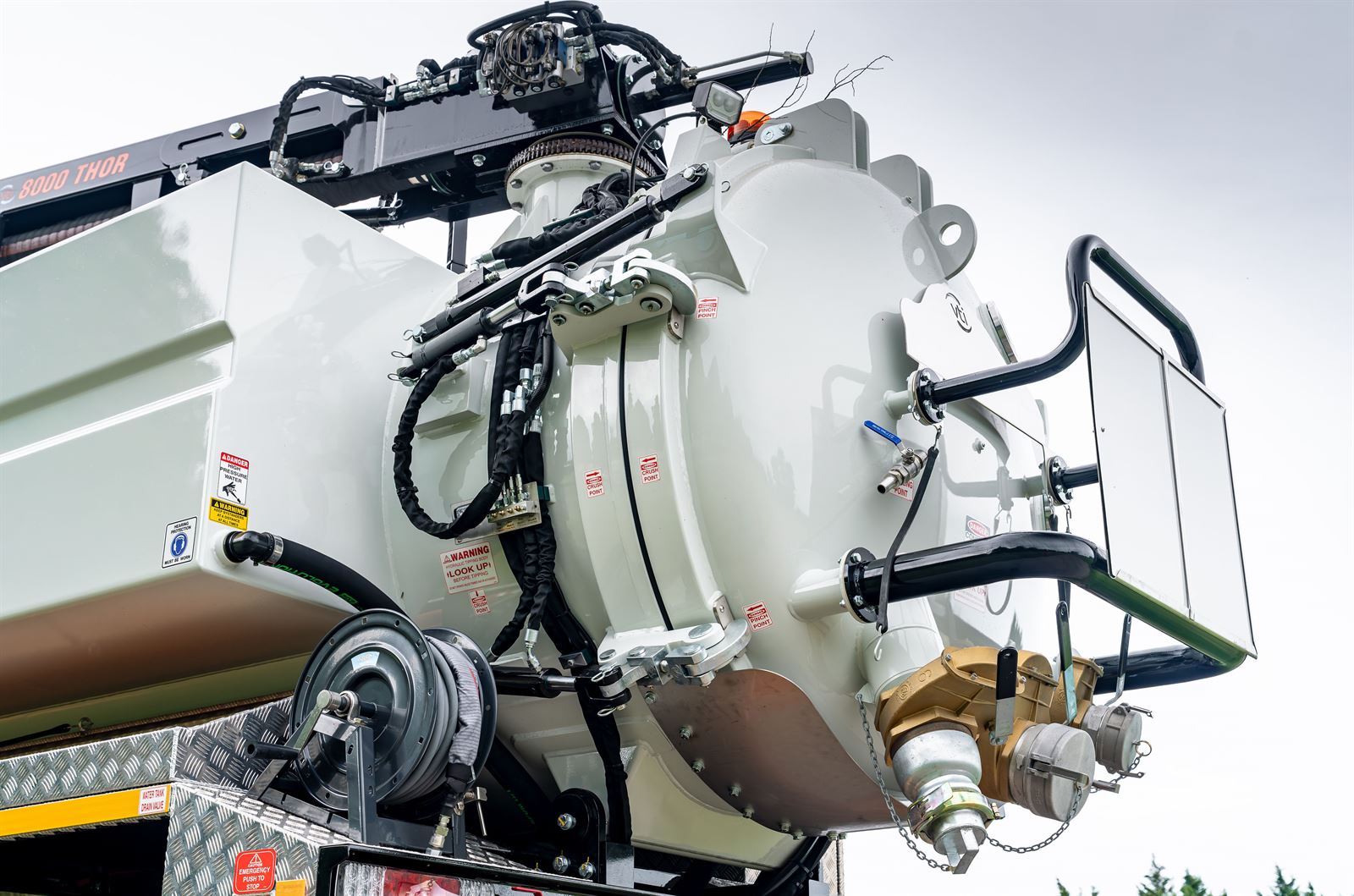

SPOIL TANK DETAILS
• 8000L Spoil tank capacity
• Spoil tank AS1210 - Class “B” designed and built – 10mm thickness
• Spoil tank door inlet/outlet valve protection bar
• Spoil tank door sampling tap
• Jurop style locking system for spoil tank door
• Spoil tank door – 6” inlet (suction) and 6” outlet (drain) both with BSP brass gate valves
WATER TANK DETAILS
• 4000L capacity – water tanks combined
• Water tanks baffled
• Water level sight indicators on both tanks

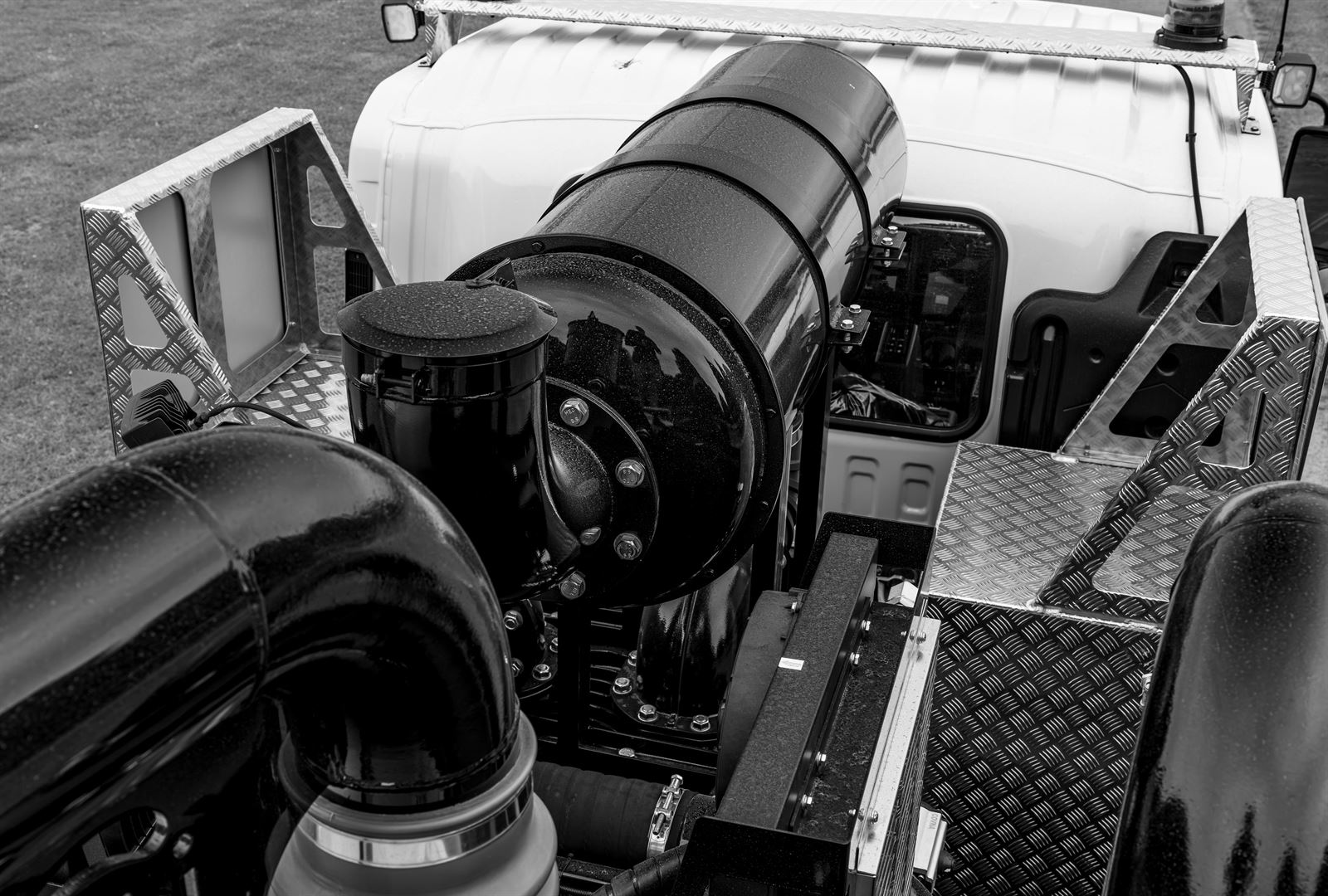

BLOWER DETAILS

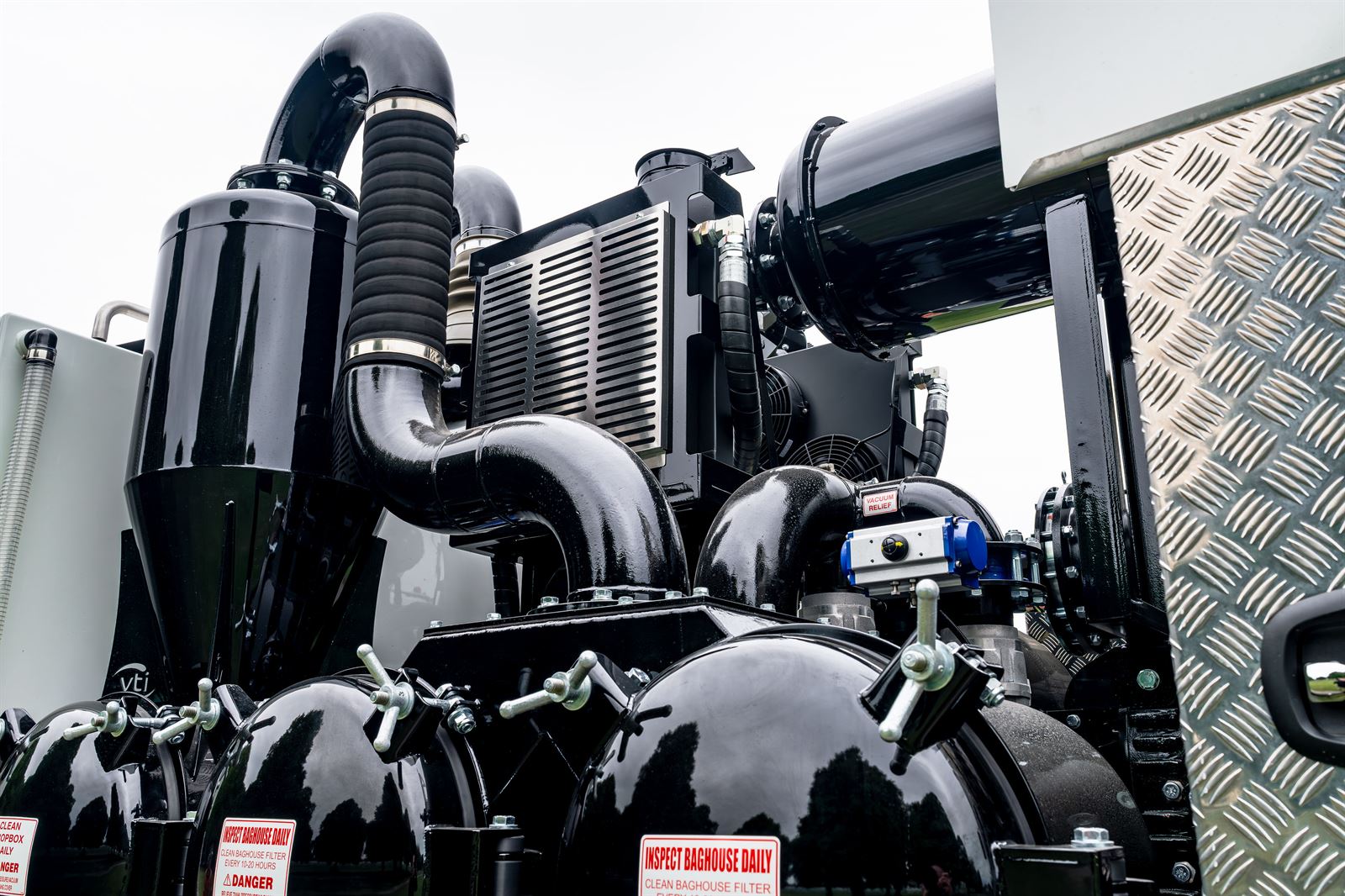

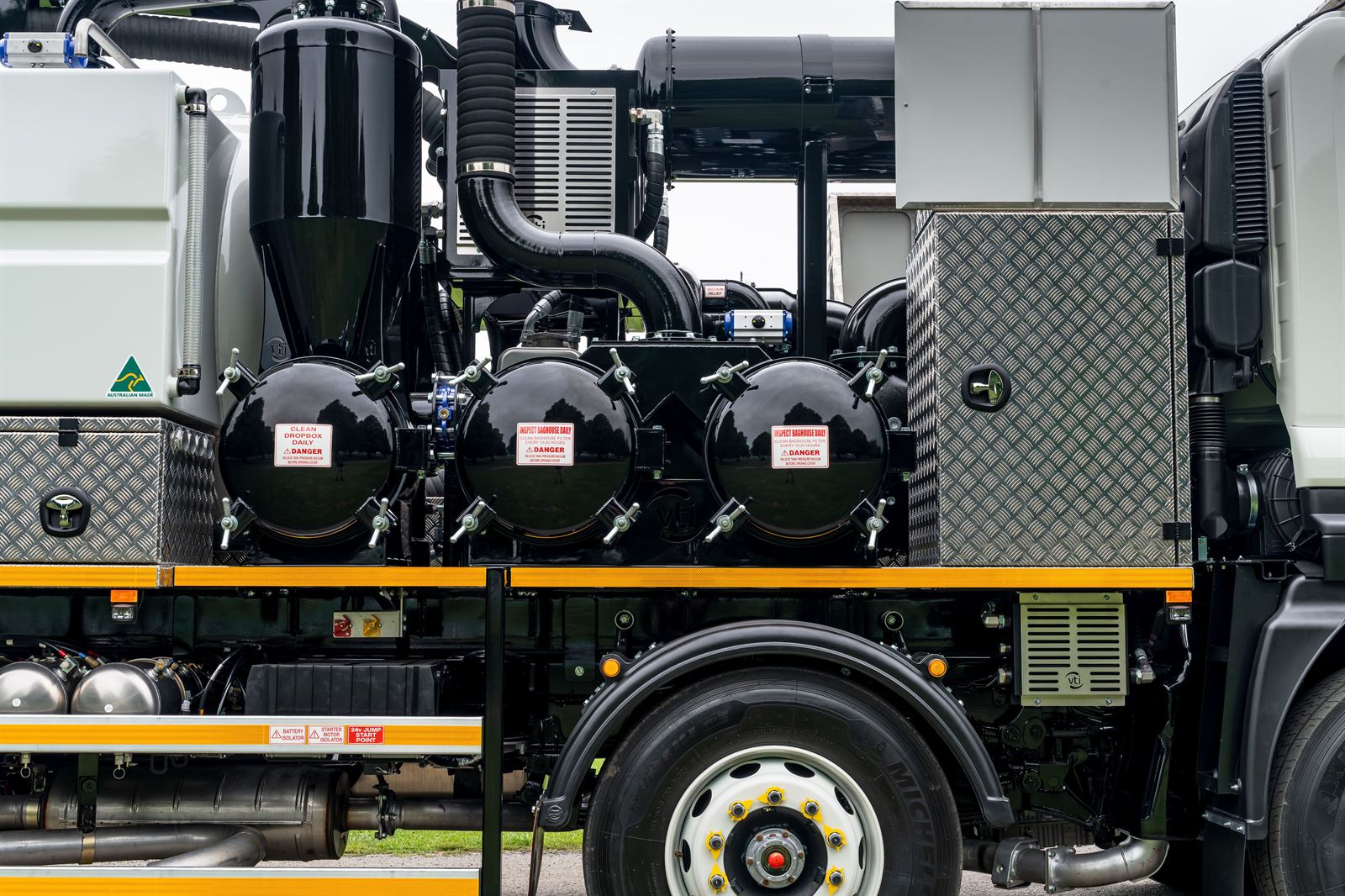

• Jurop Helix 750 air inducted high mercury – 2500cfm (28” Hg)
• Vacuum only – no 4-way valve to change to pressure
• Butterfly travel and relief valves fitted for safety and compliance
• Day (high) and night (low) option for blower operation
HYDRAULIC SYSTEM
• Heavy duty PTOs with compensating piston pumps
• Danfoss PVG32 proportional control valve and DCV valve
• All components completely hydraulic operated – no drive belts to maintain.
• 170ltr Oil tank with twin oil coolers
• All cylinders fitted with over centre valves
WATER SYSTEM DETAILS
• Comet TW70030 water pump – 26.6l/m at 3000psi (Class A Rated)
• Water pump hydraulic driven
• 2” ‘Y’ strainer filter

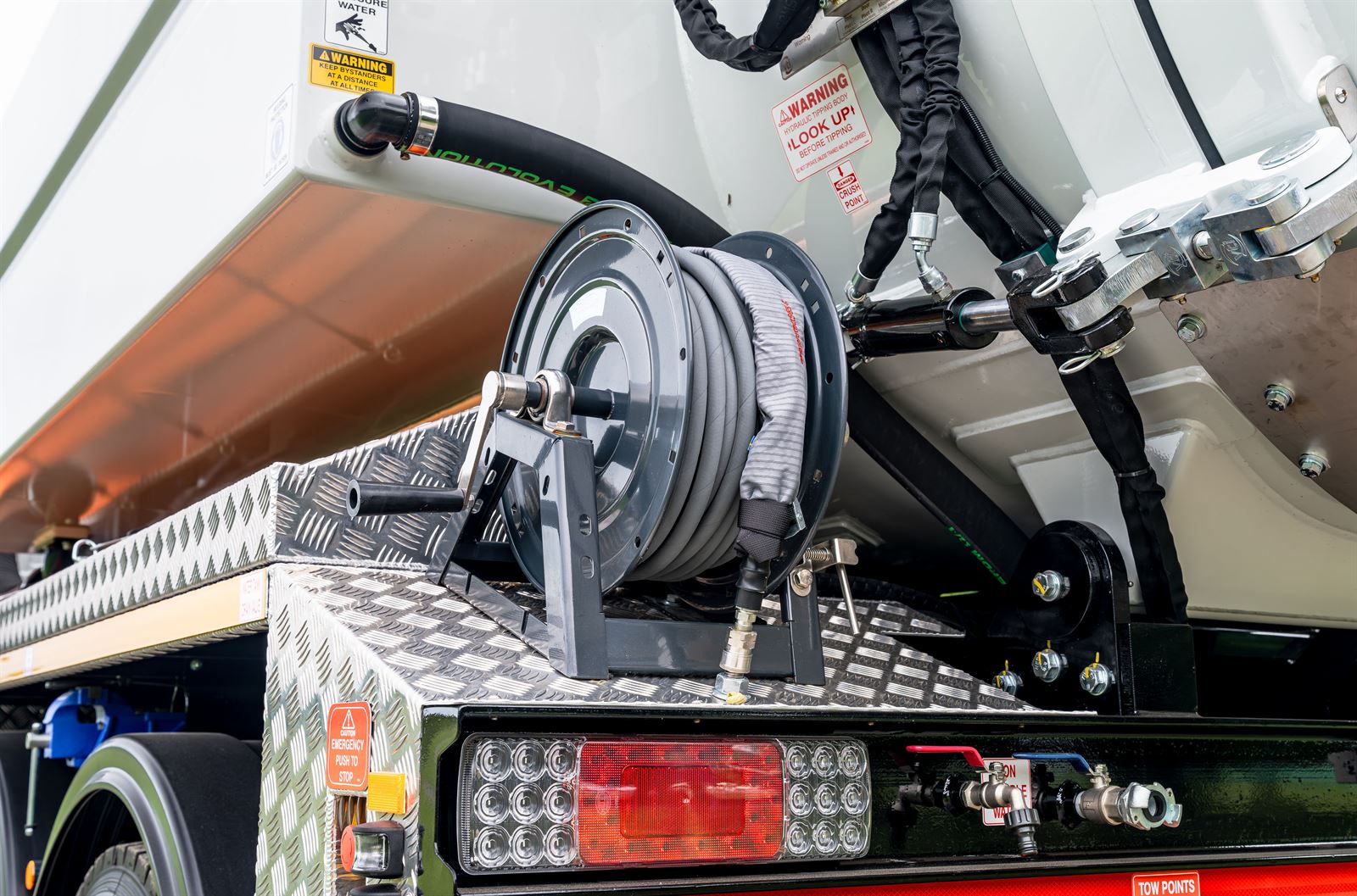

• Heavy duty hose reel complete with 25m 3/8 high pressure water hose with quick release fitting.
• Lances - 1500mm, 2100mm and flexi.
• PA 0.80 nozzles on lances
• Hydraulic washout water pump - 100psi @ 250l/m complete with 5m x 3/4” hose.

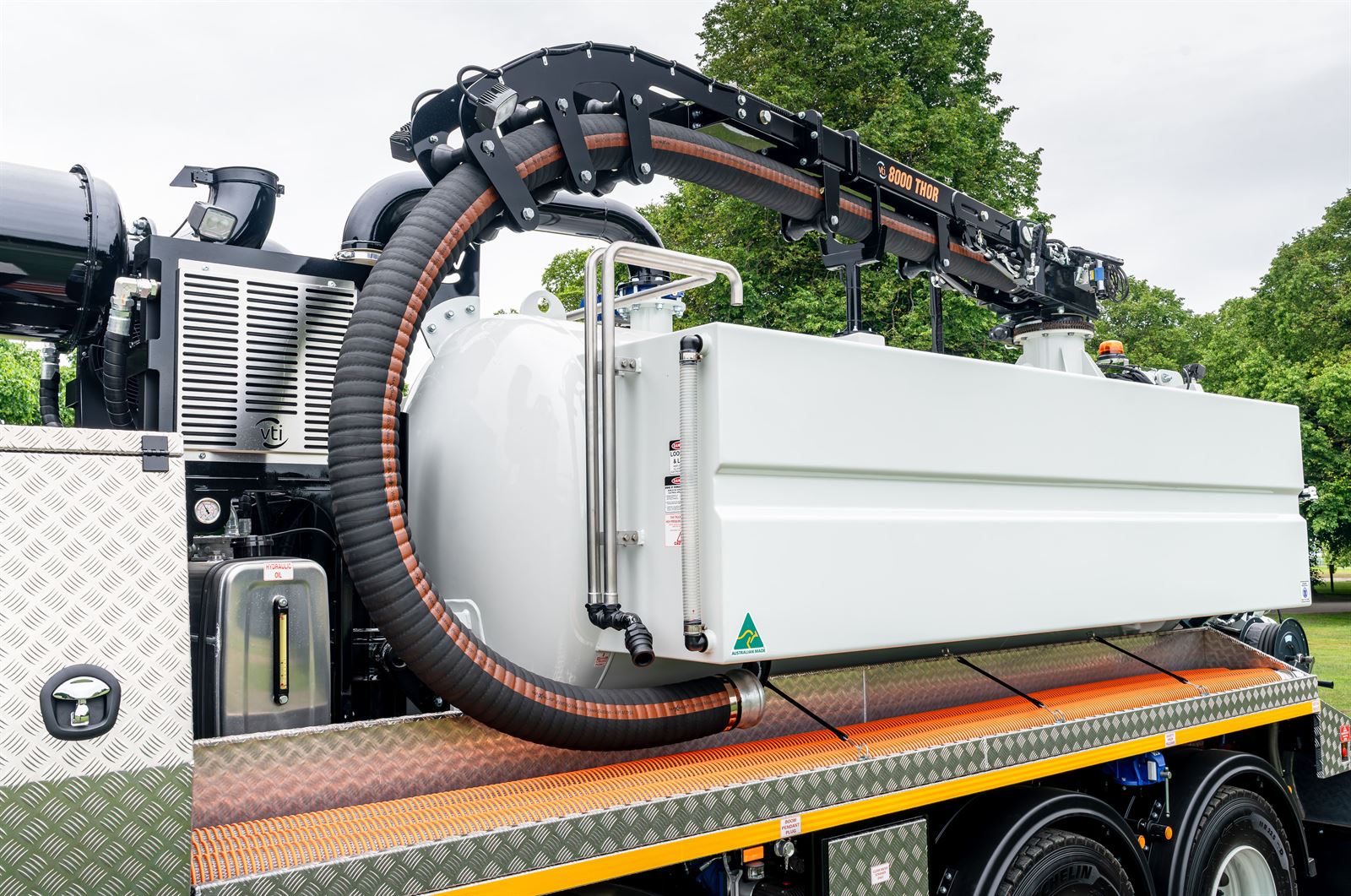

6” BOOM ASSEMBLY
• Full hydraulic boom assembly and drive with radio remote control. (Painted black)
• 270-degree slew capability with integrated slew stops
• 6” boom suction hose
• 2 x LED work lights mounted at the front of the boom
• Plug in boom pendant control for override of boom functions
• Access ladder for access to boom turret and harness attachment points
• Unique stainless steel boom plate with company name or logo laser cut into it
ELECTRICAL
• 2 x 16 button Sanreco radio remotes with system emergency shut down functionality.
• All vac unit operations can be controlled with the radio remote control.
• IFM Control System.

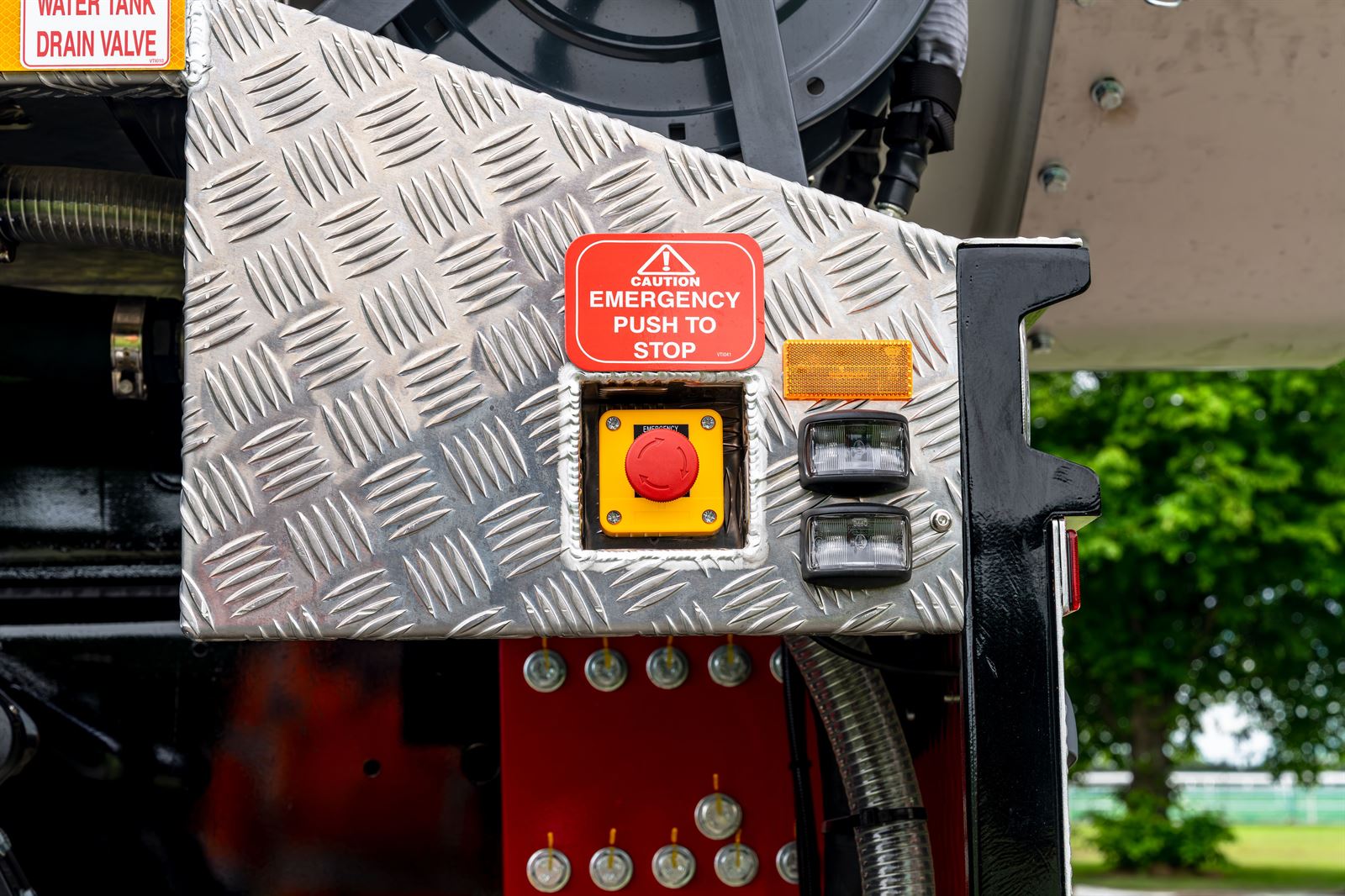

• Emergency stops fitted in key position on tray
• Rotating light and work lights fitted to spoil tank at the rear
• Quality Deutsch plugs utilised for all electrical wiring connections
• Starter & Battery Isolation Switches
• Audible alarm, light & decal in cab - Driver’s Door Open / Park Brake Not Applied, Spoil Tank Raised, Boom Raised and Boom Lockout

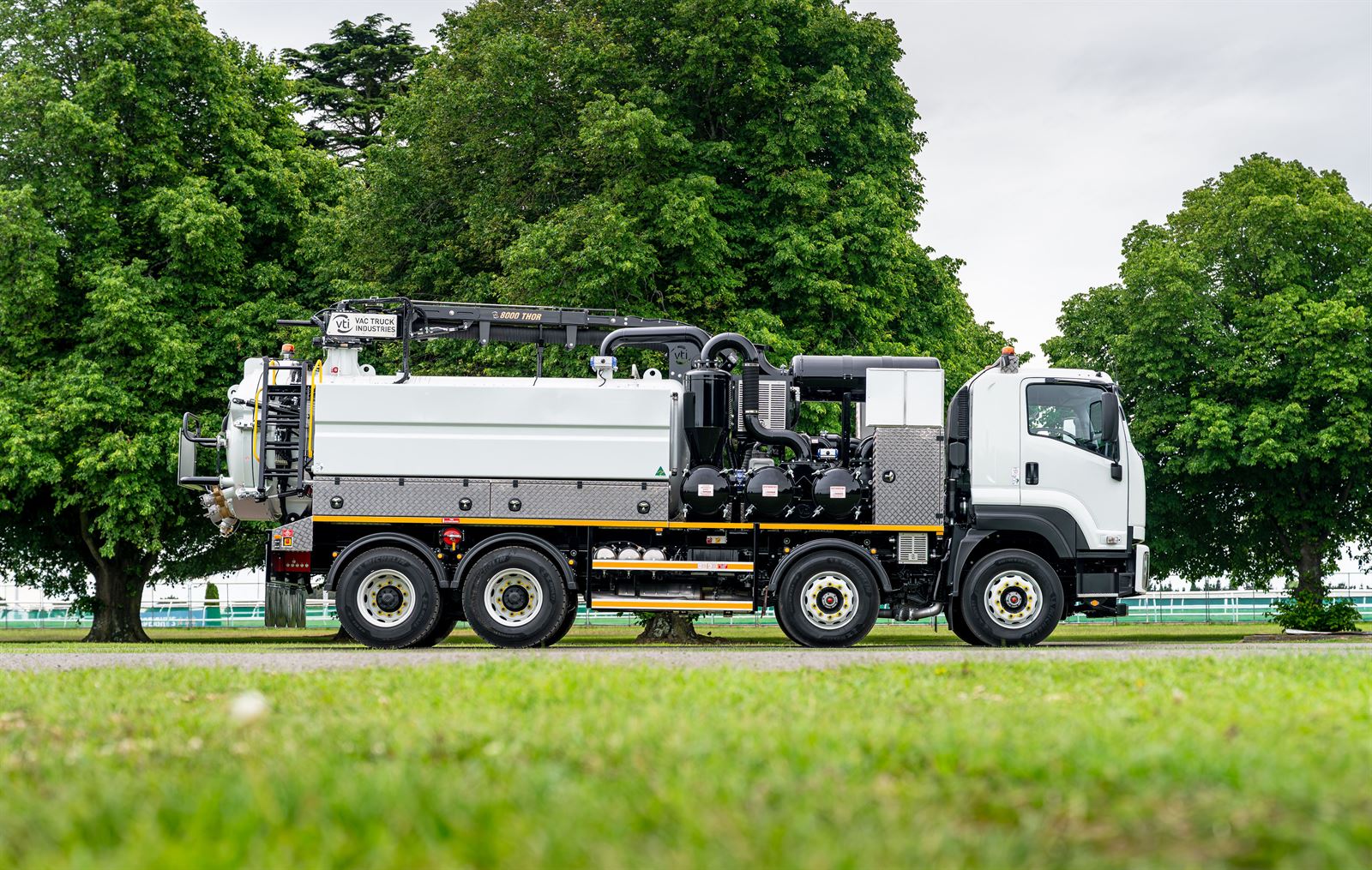

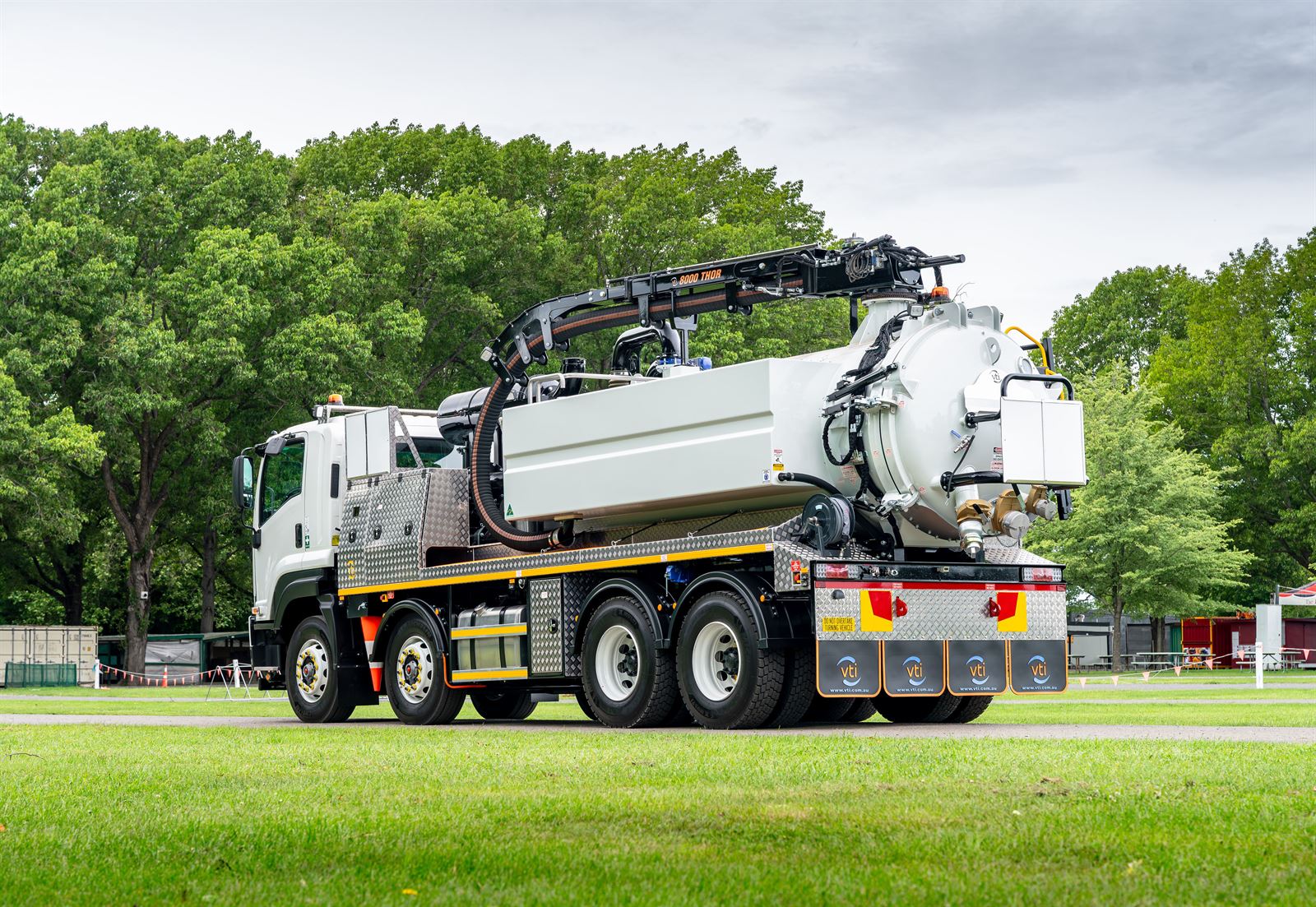

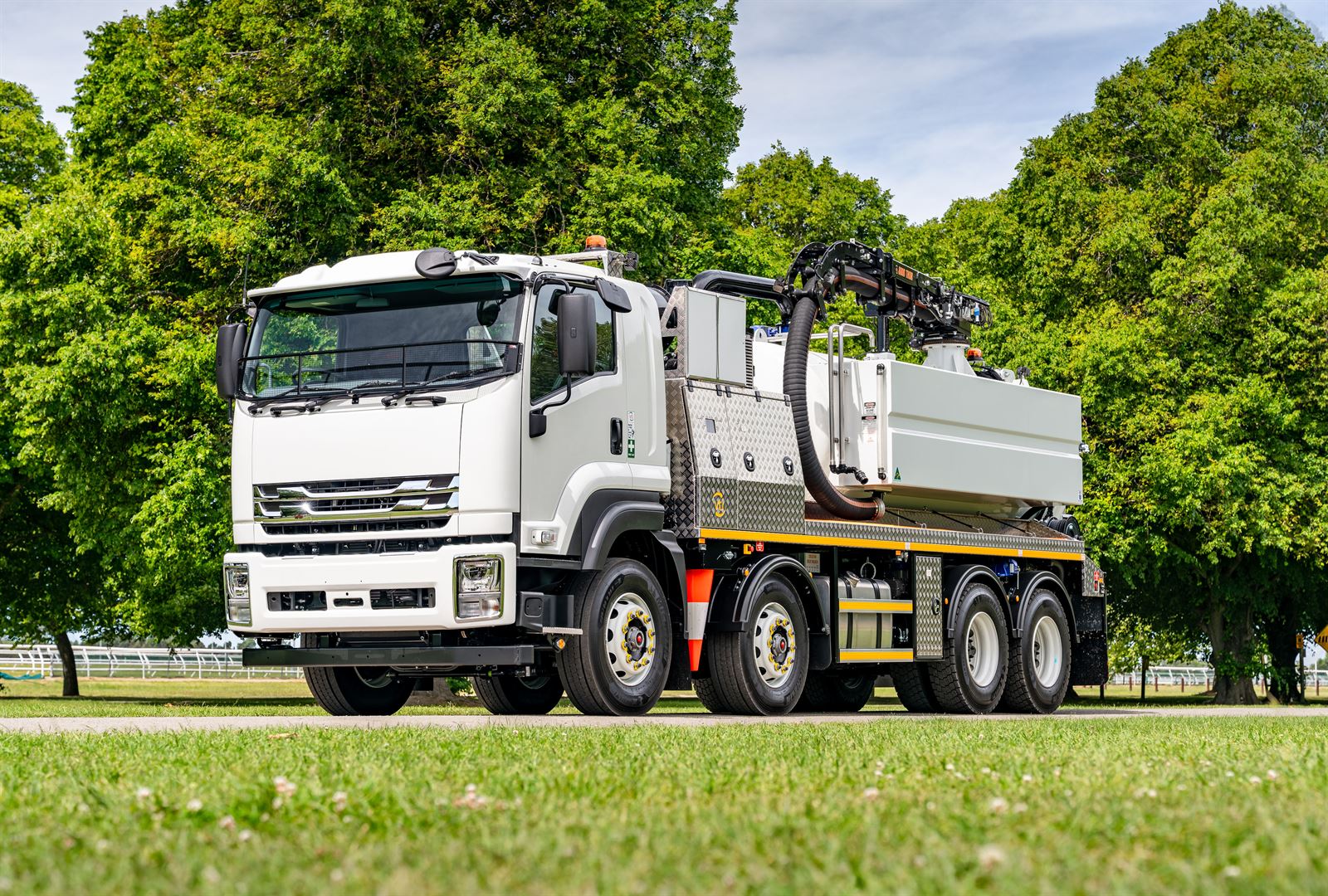

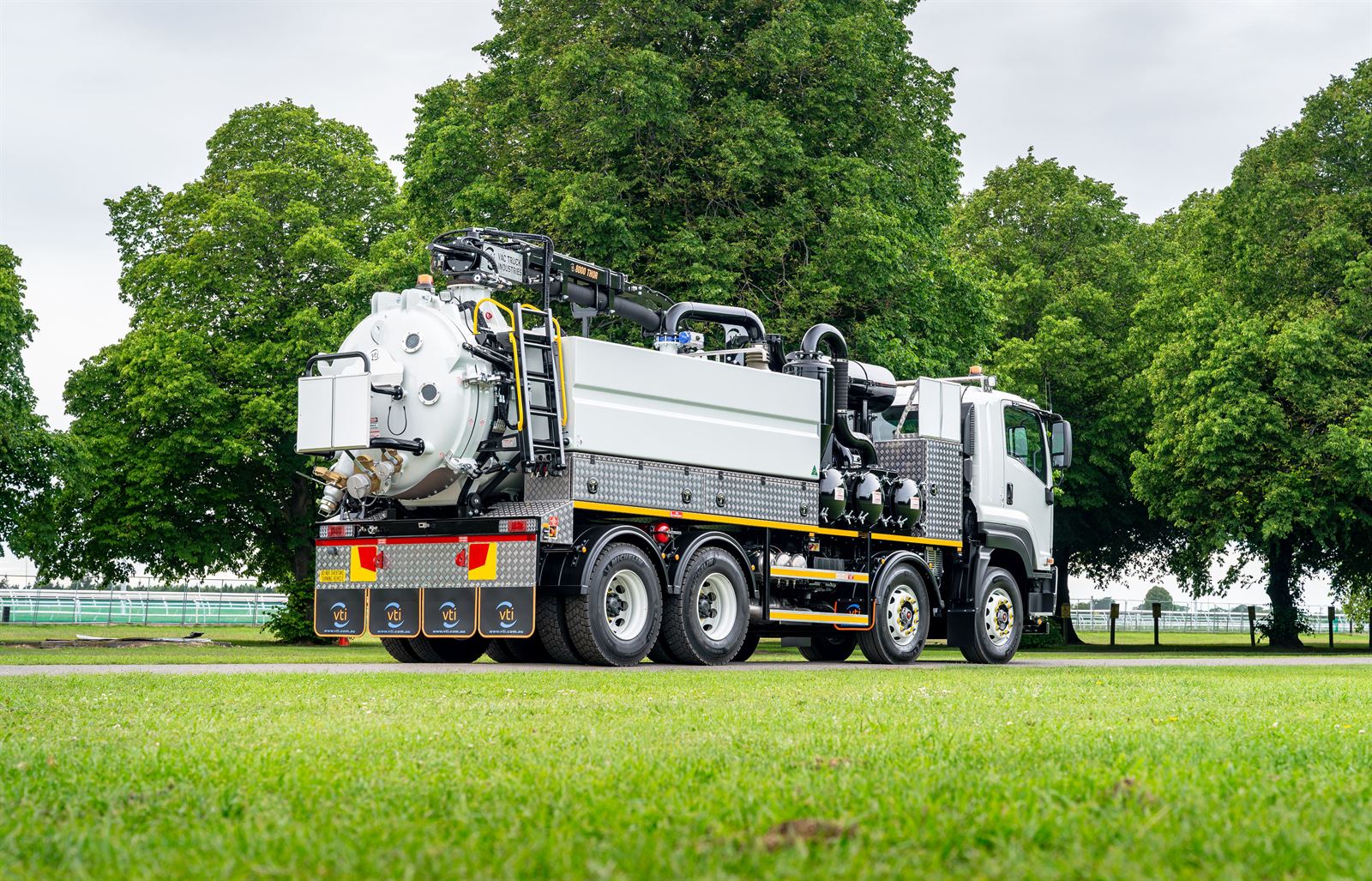

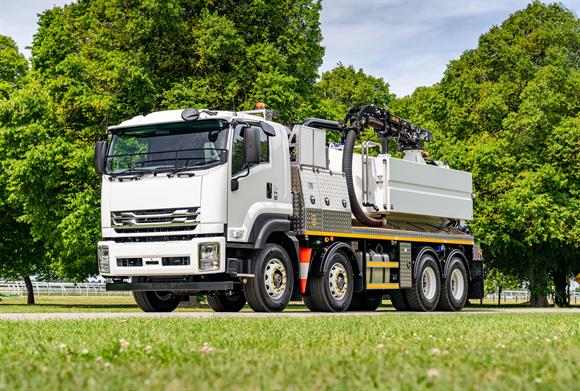

Isuzu F Series FYH350 Auto 8x4 2026
Price: P.O.A.
- Kilometres:
- 50km
- Body:
- White ,Truck - Specialty
- Fuel type:
- Diesel
- Engine:
- 9839cc 6 Speed Auto
- Horse power:
- 350hp
- Stock number:
- 502238
Comments
VTI 8000L – 2500 CFM Thor Series.SPOIL TANK DETAILS
• 8000L Spoil tank capacity
• Spoil tank AS1210 - Class “B” designed and built – 10mm thickness
• Spoil tank door inlet/outlet valve protection bar
• Spoil tank door sampling tap
• Jurop style locking system for spoil tank door
• Spoil tank door – 6” inlet (suction) and 6” outlet (drain) both with BSP brass gate valves
WATER TANK DETAILS
• 4000L capacity – water tanks combined
• Water tanks baffled
• Water level sight indicators on both tanks
BLOWER DETAILS
• Jurop Helix 750 air inducted high mercury – 2500cfm (28” Hg)
• Vacuum only – no 4-way valve to change to pressure
• Butterfly travel and relief valves fitted for safety and compliance
• Day (high) and night (low) option for blower operation
HYDRAULIC SYSTEM
• Heavy duty PTOs with compensating piston pumps
• Danfoss PVG32 proportional control valve and DCV valve
• All components completely hydraulic operated – no drive belts to maintain.
• 170ltr Oil tank with twin oil coolers
• All cylinders fitted with over centre valves
WATER SYSTEM DETAILS
• Comet TW70030 water pump – 26.6l/m at 3000psi (Class A Rated)
• Water pump hydraulic driven
• 2” ‘Y’ strainer filter
• Heavy duty hose reel complete with 25m 3/8 high pressure water hose with quick release fitting.
• Lances - 1500mm, 2100mm and flexi.
• PA 0.80 nozzles on lances
• Hydraulic washout water pump - 100psi @ 250l/m complete with 5m x 3/4” hose.
6” BOOM ASSEMBLY
• Full hydraulic boom assembly and drive with radio remote control. (Painted black)
• 270-degree slew capability with integrated slew stops
• 6” boom suction hose
• 2 x LED work lights mounted at the front of the boom
• Plug in boom pendant control for override of boom functions
• Access ladder for access to boom turret and harness attachment points
• Unique stainless steel boom plate with company name or logo laser cut into it
ELECTRICAL
• 2 x 16 button Sanreco radio remotes with system emergency shut down functionality.
• All vac unit operations can be controlled with the radio remote control.
• IFM Control System.
• Emergency stops fitted in key position on tray
• Rotating light and work lights fitted to spoil tank at the rear
• Quality Deutsch plugs utilised for all electrical wiring connections
• Starter & Battery Isolation Switches
• Audible alarm, light & decal in cab - Driver’s Door Open / Park Brake Not Applied, Spoil Tank Raised, Boom Raised and Boom Lockout
